Weight |
6 lbs |
Dimensions |
19.7 × 19.7 × 9.5 mm |
Color |
Silver
|
Available to Ship |
6 Months
|
Available for Pickup? |
Currently Unavailable
|
Processor |
Apple M1 Max with 10-core CPU, 24-core GPU, 16-core Neural Engine, Apple M1 Max with 10-core CPU, 32-core GPU, 16-core Neural Engine, Apple M1 Ultra with 20-core CPU, 48-core GPU, 32-core Neural Engine, Apple M1 Ultra with 20-core CPU, 64-core GPU, 32-core Neural Engine, Apple M1 Max 10 Core CPU 24 Core GPU, Apple M1 Max 10 Core CPU 32 Core GPU, Apple M1 Ultra 20 Core CPU 48 Core GPU, Apple M1 Ultra 20 Core CPU 64 Core GPU
|
Memory |
128GB unified memory, 32GB unified memory, 64GB unified memory
|
Storage Capacity |
1TB SSD storage, 2TB SSD storage, 4TB SSD storage, 512GB SSD storage, 8TB SSD storage
|
Warranty |
One Year Limited
|
What's in the Box? |

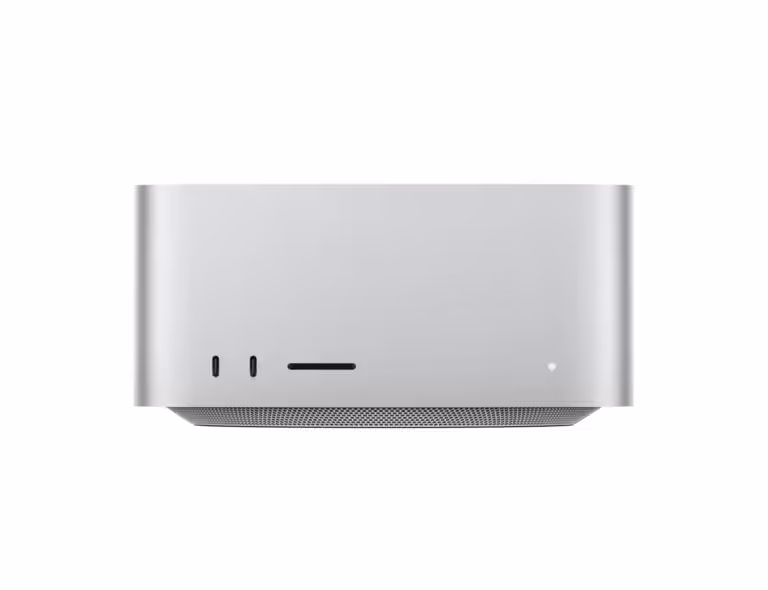

Mac Studio, Power Cord
|
Chip |
Apple M1 Max chip
10-core CPU with 8 performance cores and 2 efficiency cores
24-core GPU
16-core Neural Engine
400GB/s memory bandwidth
Media engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
Configurable to:
M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine
Apple M1 Ultra chip
20-core CPU with 16 performance cores and 4 efficiency cores
48-core GPU
32-core Neural Engine
800GB/s memory bandwidth
Media engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Two video decode engines
Four video encode engines
Four ProRes encode and decode engines
Configurable to:
M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine
|
Memory |
32GB
32GB unified memory
Configurable to:
64GB
64GB
64GB unified memory
Configurable to:
128GB
|
Storage |
512GB
512GB SSD
Configurable to:
1TB, 2TB, 4TB, or 8TB
1TB
1TB SSD
Configurable to:
2TB, 4TB, or 8TB
|
Video Support |
Simultaneously supports up to five displays:
Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB-C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI
Thunderbolt 4 digital video output supports
Native DisplayPort output over USB‑C
Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)
HDMI display video output
Support for one display with up to 4K resolution at 60Hz
DVI output using HDMI to DVI Adapter (sold separately)
|
Audio |
Four Thunderbolt 4 ports with support for:
Thunderbolt 4 (up to 40Gb/s)
DisplayPort
USB 4 (up to 40Gb/s)
USB 3.1 Gen 2 (up to 10Gb/s)
Two USB-A ports (up to 5Gb/s)
HDMI port
10Gb Ethernet
3.5 mm headphone jack
On front (M1 Max):
Two USB-C ports (up to 10Gb/s)
SDXC card slot (UHS-II)
On front (M1 Ultra):
Two Thunderbolt 4 ports (up to 40Gb/s)
SDXC card slot (UHS-II)
|
Communications |
Wi-Fi
802.11ax Wi-Fi 6 wireless networking
IEEE 802.11a/b/g/n/ac compatible
Bluetooth
Bluetooth 5.0 wireless technology
Ethernet
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
|
Size and Weight |
Height: 3.7 inches (9.5 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)
Weight (M1 Max): 5.9 pounds (2.7 kg)
Weight (M1 Ultra): 7.9 pounds (3.6 kg)
|
Electrical and Operating Requirements |
Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 370W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 90% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)
|
Limited Warranty and Service |
Your Mac Studio comes with 90 days of complimentary technical support and a one-year limited warranty.
|
Operating System |
macOS
macOS is the most advanced desktop operating system in the world. macOS Monterey introduces powerful new features to help you connect, share, and create like never before.
|
Accessibility |
Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
Voice Control
VoiceOver
Zoom
Increase Contrast
Reduce Motion
Siri and Dictation
Switch Control
Closed Captions
Text to Speech
|
Configure to Order |
Configure your Mac Studio with these options,
M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine
M1 Ultra with 20-core CPU, 48-core GPU, and 32-core Neural Engine
M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine
64GB unified memory (M1 Max)
128GB unified memory (M1 Ultra)
1TB, 2TB, 4TB, or 8TB SSD
|
Accessories |
Mac Software
Logic Pro
Final Cut Pro
Displays and Adapters
Studio Display
Pro Display XDR
USB-C to USB Adapter
USB-C Digital AV Multiport Adapter
USB-C VGA Multiport Adapter
Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter
HDMI to DVI Adapter
Other Accessories
Magic Keyboard with Touch ID and Numeric Keypad
Magic Mouse
Magic Trackpad
USB-C to Lightning Cable
Thunderbolt 4 Pro Cable (1.8 m)
Thunderbolt 4 Pro Cable (3 m)
AppleCare+ for Mac
|
